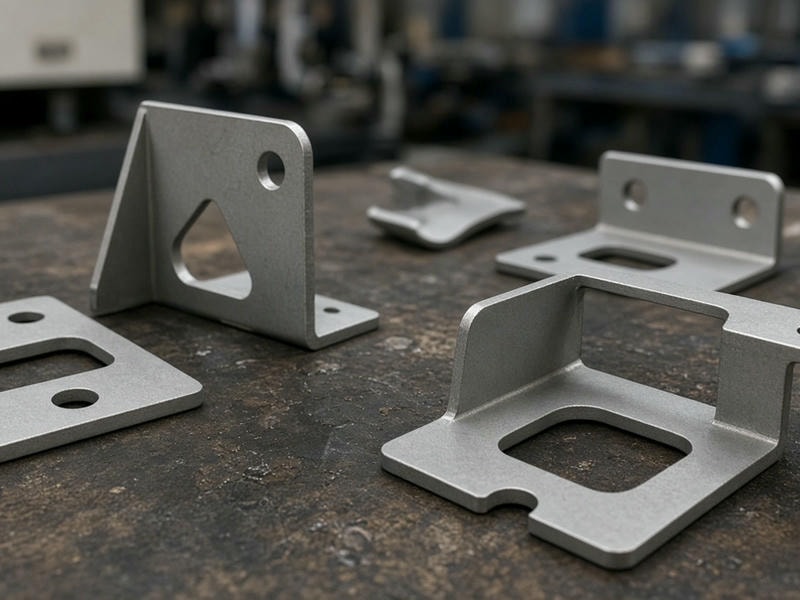

Custom Prototype Brackets: Precision Fabrication for Engineering Teams
When a mechanical assembly fails due to a misplaced hole or incorrect bend angle, project timelines suffer. BracketMFG specializes in the manufacture of custom brackets, focusing on the specific tolerances and material requirements that generic sheet metal shops often overlook.
Based in Dongguan, we support engineering and purchasing teams globally with rapid turnaround times and proactive design-for-manufacturability (DFM) reviews.
The Engineering Reality of Prototype Brackets
A bracket is not merely a bent piece of metal; it is a critical interface within an assembly. Common issues in prototype development—such as spring-back effects, welding distortion, and hole-to-bend clearance—can compromise the structural integrity of your design.
We address these factors by evaluating your STEP, DXF, or DWG files before fabrication begins. Our goal is to ensure the prototype you receive matches your final production intent, allowing for accurate testing of mounting conditions, load-bearing capacities, and assembly fit.
Common Prototype Risks We Control
- Spring-back effects during bending
- Welding distortion in complex assemblies
- Hole-to-bend clearance conflicts
- Mismatch between prototype and production intent
Technical Specifications and Fabrication Capabilities
We operate a dedicated facility for bracket manufacturing, utilizing precision laser cutting, CNC bending, and hardware insertion to minimize the need for expensive hard tooling during the prototype stage.
| Specification | Capability |
|---|---|
| Material Thickness | 0.5 – 12 mm |
| Laser Cutting Accuracy | ±0.05 mm |
| Bend Angle Tolerance | ±0.5° |
| Tapping Range | M2 – M12 |
| PEM Hardware Installation | M2 – M10 |
| Welding Processes | TIG / MIG / Laser / Spot Welding |
| CNC Machining Tolerance | Down to ±0.02 mm |
From Prototype to High-Volume Production
Selecting the correct manufacturing process early saves costs as the project scales. For initial prototypes and low-volume batches, we utilize CNC laser cutting and press brake forming to avoid custom tooling expenses.
As your design matures and volume increases, we evaluate the transition to stamping dies or progressive tooling. This strategy allows you to maintain consistent dimensional accuracy while reducing unit costs as production requirements grow.
Prototype & Low Volume
CNC laser cutting and press brake forming, no custom tooling required.
High Volume
Stamping dies and progressive tooling for lower unit costs at scale.
Material Selection and Surface Finishing
We maintain an inventory of standard metals to ensure rapid availability for your prototype projects, alongside a full suite of finishing options to meet environmental and aesthetic requirements.
Metals
- Cold Rolled Steel
- Hot Rolled Steel
- Galvanized Steel
- Stainless Steel (201/304/316)
- Aluminum (5052/6061)
- Copper
- Brass
- Spring Steel
Finishing
- Powder Coating
- Painting
- Zinc Plating
- Nickel Plating
- Chrome Plating
- Black Oxide
- Anodizing
- Sandblasting
- Brushing
- Polishing
- Passivation
- E-Coating
Design for Manufacturability (DFM) Support
Submit your drawings for a feasibility check to avoid costly revisions. Our engineering team reviews the following parameters before production:
Request a DFM ReviewMounting conditions and hole patterns
Bend radius and material thickness compatibility
Assembly tolerances and fastener clearance
Surface finish compatibility for specific operating environments
Welding distortion control for complex assemblies
Get a Quote for Your Prototype Brackets
BracketMFG provides a single source for custom bracket manufacturing, from one-piece prototypes to mass production. Send your STEP, STP, DXF, or PDF files for an itemized quote. Our team will review your specifications and provide a manufacturing plan tailored to your volume and quality requirements.
