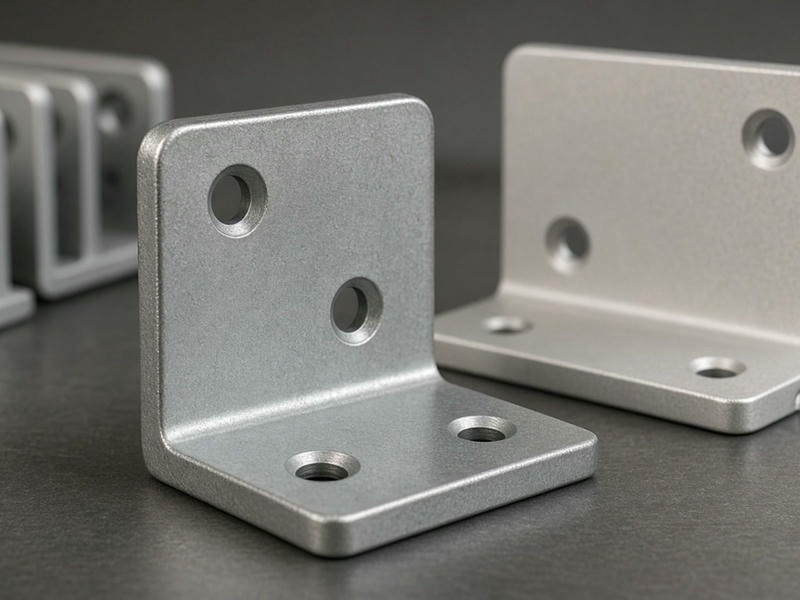

Custom Angle Bracket Manufacturing: From Prototype to Mass Production
For engineers and procurement teams, an angle bracket is more than a simple bent piece of metal. It is a critical structural element where hole accuracy, bend radius, and flatness determine the success of an entire assembly. BracketMFG focuses exclusively on the manufacturing of custom metal brackets, providing the precision and repeatability required for industrial, robotics, and automotive applications.
We process your CAD files (STEP, DXF, DWG, PDF) to deliver parts that meet your exact mounting conditions, load requirements, and assembly tolerances.
- Standard Tolerance
- ±0.10 mm
- Critical Tolerance
- ±0.05 mm
- Prototype Lead Time
- 3–7 days
Engineering and Design for Manufacturability (DFM)
Before production begins, our engineering team reviews your drawings to identify potential manufacturing issues. By addressing these factors early, we prevent dimensional errors that could stop your assembly line.
Bend Feasibility
Ensuring the desired angle and leg length can be achieved with our press brake equipment without compromising material integrity.
Hole Pattern Accuracy
Verifying clearance for hardware and alignment with mating parts.
Material and Thickness Selection
Advising on the optimal metal grade for your specific structural load and environmental requirements.
Welding Distortion Control
Implementing strategies to minimize heat-affected zones during assembly.
Manufacturing Capabilities and Technical Specifications
BracketMFG utilizes a combination of laser cutting, CNC punching, and precision bending to produce angle brackets that meet strict engineering standards. Our facility is equipped to handle everything from small, intricate sensor brackets to large structural components.
| Feature | Capability |
|---|---|
| Material Thickness | 0.5 – 12 mm |
| Laser Cutting (Carbon Steel) | Up to approx. 20 mm |
| Laser Cutting (Stainless Steel) | Up to approx. 12 mm |
| Maximum Bending Length | 3000 mm |
| Press Brake Capacity | Up to 160 Ton |
| Standard Dimensional Tolerance | ±0.10 mm |
| Critical Feature Tolerance | ±0.05 mm |
| Standard Bend Angle Tolerance | ±0.5° |
| Tapping Range | M2 – M12 |
| PEM Hardware Installation | M2 – M10 |
We maintain consistent production quality through standardized processes, automated bending cells, and dedicated fixtures for recurring orders.
Scalable Production: From Prototype to Stamping
We tailor our manufacturing process to your production volume to optimize both cost and quality.
Prototyping & Low-Volume
For initial testing or small batches, we utilize laser cutting and CNC bending. This eliminates the need for expensive tooling, allowing for fast turnaround times—typically 3–7 days.
Medium-Volume
We implement dedicated fixtures and automated production cells to improve consistency and reduce unit costs as your demand grows.
High-Volume
For stable, long-term programs, we transition parts to stamping dies, progressive dies, or compound tooling. This shift significantly reduces the cost per part while ensuring high repeatability across thousands of units.
Materials and Surface Finishing
The performance of an angle bracket often depends on its finish and material properties. We stock and process a wide range of materials to suit your application.
Metals
- •Cold / Hot Rolled Steel, Galvanized Steel
- •Stainless Steel (201 / 304 / 316)
- •Aluminum (5052 / 6061)
- •Copper, Brass, and Spring Steel
Finishing Options
To ensure corrosion resistance and aesthetic requirements are met, we offer:
Not sure which grade or finish fits your environment? Our engineers advise on the optimal combination for structural load, corrosion exposure, and assembly requirements.
Quality Control Standards
BracketMFG operates with a focus on dimensional accuracy. A misplaced hole or poor flatness in an angle bracket can cause significant issues during integration. Our quality control team performs rigorous inspections throughout the production cycle.
-
01
Drawing Review
Verifying all callouts against supplied engineering drawings.
-
02
In-Process Inspection
Monitoring bend angles and hole locations during the forming stage.
-
03
Post-Process Inspection
Checking flatness and surface finish compatibility.
-
04
Final Quality Assurance
Ensuring protective packaging prevents deformation during transit.
Industries Served
We serve a diverse range of sectors that require reliable, high-precision bracketry.
Robotics & Automation
Precision mounting brackets for sensors and actuators.
Automotive
Structural reinforcement brackets for assembly.
Data Centers & HVAC
Mounting and support brackets for server racks and environmental control units.
Electronics
Compact, high-tolerance brackets for internal hardware.
Construction Hardware
Heavy-duty angle supports for industrial machinery.
Request a Quote
If you have a design ready for review, send your files to . Please include your required material, thickness, surface finish, and annual volume estimates. Our team will provide a quote and DFM feedback for your angle bracket project.
