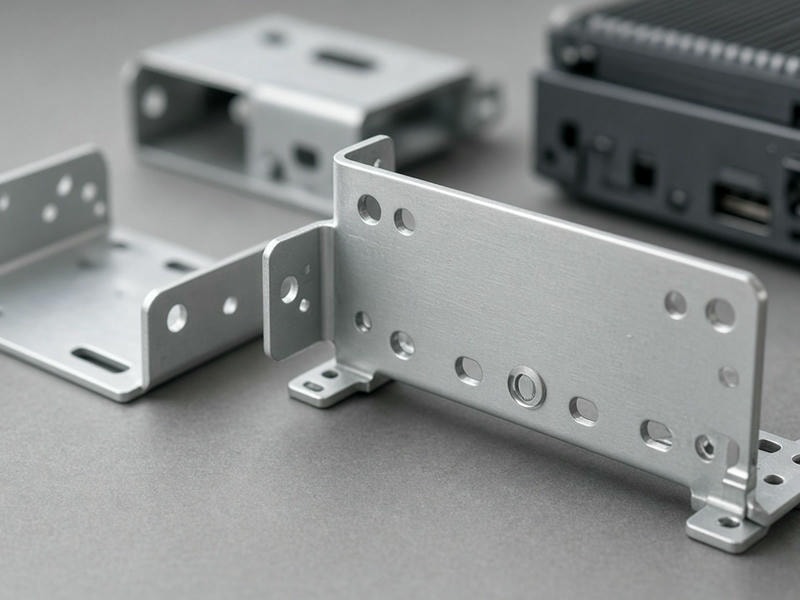

Custom Electronics Brackets: Precision Manufacturing for Hardware Engineers
Electronics enclosures and internal assemblies rely on the structural integrity of mounting components. A bracket that fails to align by a fraction of a millimeter can halt an entire production line or cause critical assembly failures. At BracketMFG, we specialize in manufacturing custom electronics brackets that meet exact hole patterns, material specifications, and assembly tolerances.
Engineered for Electronics Assembly
Unlike general sheet metal shops, we focus exclusively on the specific requirements of electronics hardware. We understand that electronics brackets often require high-density hole patterns, specific PEM hardware integration, and precise bend radii to ensure components fit correctly within your enclosure or chassis.
We assist your engineering team with Design for Manufacturability (DFM) reviews to identify potential issues before production begins. We analyze your STEP, DXF, or PDF files for:
-
Assembly Fit
Ensuring hole locations align with your PCB or component mounting points.
-
Material Selection
Balancing electrical grounding requirements with structural strength using materials like stainless steel, aluminum, or cold-rolled steel.
-
Bend Feasibility
Optimizing bend radii to prevent material cracking and ensure consistent geometry.
-
Surface Finishing
Providing appropriate finishes—such as zinc plating, powder coating, or passivation—to meet conductivity, corrosion resistance, and aesthetic standards.
Why Engineers Choose BracketMFG
We treat every bracket as a critical component. By focusing on drawing review and production consistency, we prevent the "misplaced hole" or "incorrect bend" issues that disrupt assembly lines. You receive parts that are ready to install, reducing your internal inspection time and assembly rework.
Manufacturing Capabilities
Our Dongguan facility is equipped to handle the full lifecycle of your project, from single-piece prototypes to large-scale production runs.
| Specification | Typical Capability |
|---|---|
| Material Thickness | 0.5 – 12 mm |
| Laser Cutting Accuracy | ±0.05 mm |
| Standard Dimensional Tolerance | ±0.10 mm |
| Critical Feature Tolerance | ±0.05 mm |
| Max Bending Length | 3000 mm |
| Press Brake Capacity | Up to 160 Ton |
| Tapping Range | M2 – M12 |
| PEM Hardware Installation | M2 – M10 |
| Surface Roughness | Ra 0.8 – 3.2 μm |
Scaling from Prototype to Mass Production
We adapt our manufacturing process to match your project volume, helping you manage costs without compromising quality.
Prototyping & Low-Volume
Utilizing laser cutting, CNC punching, and manual forming to deliver functional parts in 3–7 days. This allows you to validate your design and assembly fit without investing in expensive tooling.
Mid-Volume Production
We implement dedicated fixtures and standardized production cells to improve repeatability and reduce unit costs for batch orders.
High-Volume Programs
For stable, long-term programs, we transition designs to stamping dies and progressive tooling. This approach significantly reduces the cost per part for millions of units while maintaining consistent dimensional accuracy.
Finishing Options for Electronics
Electronics environments often dictate specific surface requirements. We offer a full suite of finishes to ensure your brackets perform in their intended environment:
-
Conductive Finishes: Zinc and Nickel plating for grounding and corrosion resistance.
-
Protective Coatings: Powder coating and E-coating for harsh industrial environments.
-
Identification: Laser marking and silk screen printing for part numbers, serials, or alignment indicators.
Supported File Formats
Send your technical drawings to our team for a DFM review and a prompt quotation.
Request a Quote
Ready to move your electronics bracket design into production? Send your technical drawings to our team for a DFM review and a prompt quotation. Submit your files today to receive a manufacturing feasibility assessment and lead time estimate.
- Supported Formats: STEP, STP, DXF, DWG, PDF
