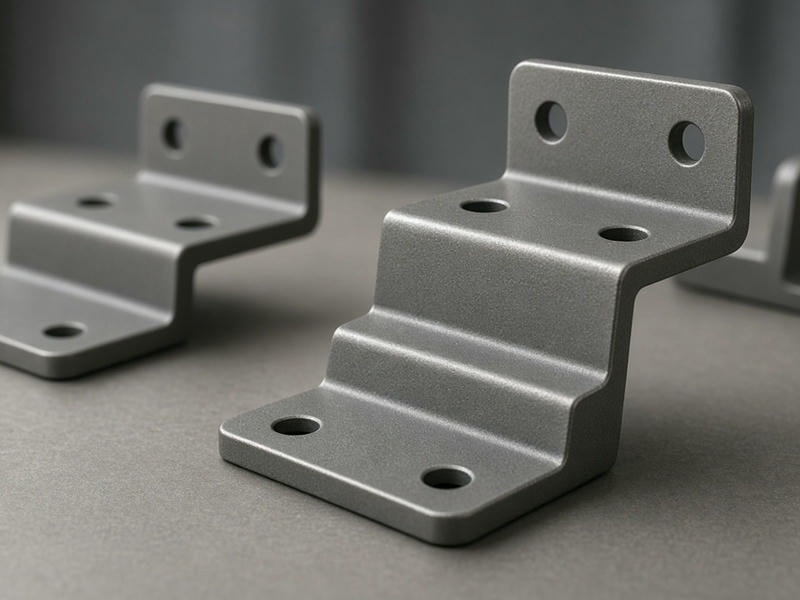

Custom Offset Brackets Manufacturing
Offset brackets are essential for bridging gaps between surfaces or providing structural elevation in assemblies. Because these parts often require multiple bends in close proximity, they are susceptible to springback and dimensional drift if not manufactured correctly.
At BracketMFG, we specialize exclusively in metal brackets. We are not a general fabrication shop; we focus on the specific geometric challenges that offset brackets present, ensuring your parts arrive ready for assembly without rework or manual adjustment.
Engineering Considerations for Offset Designs
Producing an accurate offset bracket requires more than just a press brake. The tight bend sequences often create internal stress that can alter hole positions or cause the part to twist. Our engineering team reviews every design file (STEP, DXF, DWG) before production begins.
Bend Sequence Optimization
We determine the most efficient bending order to minimize material deformation across closely spaced bends.
Springback Compensation
Tool settings are adjusted based on material grade and thickness so the final offset height meets your drawing specifications.
Hole Pattern Integrity
We evaluate holes placed too close to bend radii, which can cause elongation or cracking, and suggest DFM adjustments where necessary.
Manufacturing Capabilities
We combine laser cutting, CNC punching, and precision bending to create offset brackets that meet tight tolerances. By controlling these variables at the machine level, we reduce the risk of assembly line downtime caused by misaligned parts.
| Specification | Typical Capability |
|---|---|
| Material Thickness | 0.5 – 12 mm |
| Carbon Steel Laser Cutting | Up to approx. 20 mm |
| Stainless Steel Laser Cutting | Up to approx. 12 mm |
| Aluminum Laser Cutting | Up to approx. 10 mm |
| Maximum Bending Length | 3000 mm |
| Press Brake Capacity | Up to 160 Ton |
| Standard Dimensional Tolerance | ±0.10 mm |
| Critical Feature Tolerance | ±0.05 mm |
| Standard Bend Angle Tolerance | ±0.5° |
| Laser Cutting Position Accuracy | ±0.05 mm |
| Tapping Range | M2 – M12 |
| PEM Nuts / Studs | M2 – M10 |
Material Selection and Finishing
The choice of material and finish impacts both the structural integrity and the longevity of your offset brackets. We maintain a consistent inventory of common metals to ensure rapid turnaround times.
Common Materials
- Cold / Hot Rolled Steel
- Galvanized Steel
- Stainless Steel (201, 304, 316)
- Aluminum (5052, 6061)
- Copper, Brass, and Spring Steel
Surface Finishing Options
To ensure your brackets survive their operating environment, we provide powder coating, zinc plating, nickel plating, black oxide, anodizing, and passivation. If your application requires specific corrosion resistance or aesthetic requirements, our team will recommend the most cost-effective finish that meets your specs.
Scalable Production: From Prototype to Mass Run
We align our manufacturing process with your production volume to balance quality with cost.
Prototypes and Low Volume
We use laser cutting and manual or automated bending. This avoids expensive tooling costs and allows for design iterations based on your assembly fit tests.
Medium Volume
We employ dedicated fixtures and standardized production cells to maintain repeatability while keeping unit costs manageable.
High Volume
Once a design is finalized, we evaluate the transition to stamping dies or progressive tooling. This shift significantly reduces per-part cost and increases production throughput for long-term programs.
Request a Quote for Your Offset Brackets
We provide fast, accurate quotes based on your engineering drawings. Whether you need a single prototype or a long-term production partner, we offer the technical expertise to ensure your offset brackets meet your assembly requirements.
How to get started
-
1
Submit your files: Send your STEP, DXF, DWG, or PDF drawings to .
-
2
DFM Review: We review your bend radii, material thickness, and hole locations.
-
3
Production: Once approved, we move into fabrication, ensuring consistent quality from the first piece to the last.
